Install and Configure OpenDKIM on CentOS 8/RHEL 8 Mail Server

Previously I showed you how to set up SPF and DKIM on CentOS/RHEL mail server. Two common pieces of software that can do DKIM signing and verification on Linux are OpenDKIM and Amavis. In that tutorial I used Amavis, because at the time OpenDKIM isn’t included in any CentOS 8/RHEL 8 repository. As of now, OpenDKIM is included in the EPEL repository. Some folks prefer to use OpenDKIM so I will show you how in this tutorial.

What is DKIM?

DKIM (DomainKeys Identified Mail) is a type of TXT records in DNS that can help with preventing email spoofing and making legitimate emails delivered into the recipient’s inbox instead of spam folder. DKIM uses a private key to add a signature to emails sent from your domain. Receiving SMTP servers verify the signature by using the corresponding public key, which is published in your domain’s DNS records.

Disabling DKIM in Amavis

If you followed my previous Amavis tutorial, but now you want to use OpenDKIM, you need to disable DKIM in Amavis. Edit the main configuration file.

sudo nano /etc/amavisd/amavisd.conf

Find the following lines.

$enable_dkim_verification = 1;  # enable DKIM signatures verification
$enable_dkim_signing = 1;       # load DKIM signing code, keys defined by dkim_key

Add a # character at the beginning of each line to comment them out.

#$enable_dkim_verification = 1;  # enable DKIM signatures verification
#$enable_dkim_signing = 1;       # load DKIM signing code, keys defined by dkim_key

Save and close the file. Then restart Amavis.

sudo systemctl restart amavisd

Step 1: Install and Configure OpenDKIM on CentOS 8/RHEL8

First enable the EPEL (Extra Packages for Enterprise Linux) repository and install OpenDKIM.

sudo dnf install epel-release

sudo dnf install opendkim opendkim-tools

Edit OpenDKIM main configuration file.

sudo nano /etc/opendkim.conf

Find the following line.

Mode     v

By default, OpenDKIM runs in verification mode (v), which will verify the DKIM signature of incoming email messages. We need to sign outgoing emails, so change this line to the following to enable signing mode.

Mode           sv

Then find the following lines.

## Specifies whether or not the filter should generate report mail back
## to senders when verification fails and an address for such a purpose
## is provided. See opendkim.conf(5) for details.
SendReports yes

## Specifies the sending address to be used on From: headers of outgoing
## failure reports. By default, the e-mail address of the user executing
## the filter is used (executing_user@hostname).
# ReportAddress "Example.com Postmaster" <[email protected]>

When a signature verification fails and the signature included a reporting request (“r=y”) and the signing domain advertises a reporting address (i.e. ra=user) in a reporting record in the DNS, OpenDKIM will send a structured report to that address containing details needed to reproduce the problem. You may want to use a particular From email address to send the report. Uncomment the ReportAddress parameter and change email address. Note that this will not create the backscatter problem, because report emails will sent to an email address specified in the sender domain’s DNS record.

Find the following line and comment it out, because we will use separate keys for each domain name.

KeyFile   /etc/opendkim/keys/default.private

Next, find the following 4 lines and uncomment them.

# KeyTable            /etc/opendkim/KeyTable

# SigningTable        refile:/etc/opendkim/SigningTable

# ExternalIgnoreList  refile:/etc/opendkim/TrustedHosts

# InternalHosts       refile:/etc/opendkim/TrustedHosts

Save and close the file.

Step 2: Create Signing Table, Key Table and Trusted Hosts File

Edit the signing table file.

sudo nano /etc/opendkim/SigningTable

Add the following line at the end of this file. This tells OpenDKIM that if a sender on your server is using a @your-domain.com address, then it should be signed with the private key identified by 20200308._domainkey.your-domain.com.

*@your-domain.com    20200308._domainkey.your-domain.com

20200308 is the DKIM selector. A domain name might have multiple DKIM keys. The DKIM selector allows you to choose a particular DKIM key. You can use whatever name for the DKIM selector, but I found it’s convienent to use the current date (March 8, 2020) as the DKIM selector. Save and close the file. Then edit the key table file.

sudo nano /etc/opendkim/KeyTable

Add the following line, which specifies the location of the DKIM private key.

20200308._domainkey.your-domain.com     your-domain.com:20200308:/etc/opendkim/keys/your-domain.com/20200308.private

Save and close the file. Next, edit the trusted hosts file.

sudo nano /etc/opendkim/TrustedHosts

127.0.0.0.1 and ::1 are included in this file by default. Now add the following line. This tells OpenDKIM that if an email is coming from your own domain name, then OpenDKIM should sign the email but don’t perform DKIM verification on the email.

.your-domain.com

Save and close the file.

Note: You should not add an asterisk in the domain name like this: *.your-domain.com. There should be only a dot before the domain name.

Step 3: Generate Private/Public Keypair

Since DKIM is used to sign outgoing messages and verify incoming messages, we need to generate a private key for signing and a public key for remote verifier. Public key will be published in DNS.

Create a separate folder for the domain.

sudo mkdir /etc/opendkim/keys/your-domain.com

Generate keys using opendkim-genkey tool.

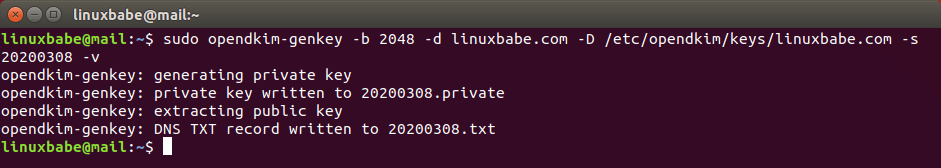

sudo opendkim-genkey -b 2048 -d your-domain.com -D /etc/opendkim/keys/your-domain.com -s 20200308 -v

The above command will create 2048 bits keys. -d (domain) specifies the domain. -D (directory) specifies the directory where the keys will be stored. I use 20200308 as the DKIM selector. Once the command is executed, the private key will be written to 20200308.private file and the public key will be written to 20200308.txt file.

By default, only root can read and write to the key files. Make opendkim as the owner of the private key.

sudo chown opendkim:opendkim /etc/opendkim/keys/ -R

Step 4: Publish Your Public Key in DNS Records

Display the public key

sudo cat /etc/opendkim/keys/your-domain.com/20200308.txt

The string after the p parameter is the public key.

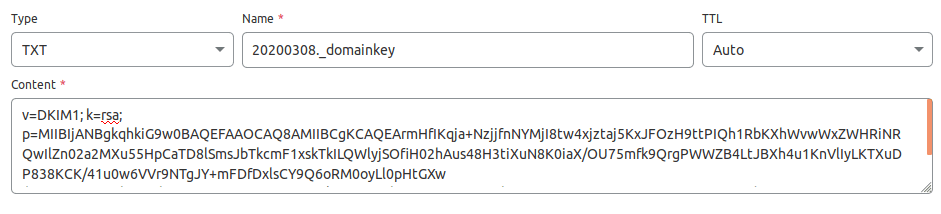

In you DNS manager, create a TXT record, enter 20200308._domainkey in the name field. (You need to replace 20200308 with your own DKIM selector.) Then go back to the terminal window, copy everything in the parentheses and paste it into the value field of the DNS record. You need to delete all double quotes and line breaks in the value field. If you don’t delete them, then key test in the next step will probably fail.

Step 5: Test DKIM Key

Enter the following command on your CentOS 8/RHEL 8 server to test your key.

sudo opendkim-testkey -d your-domain.com -s 20200308 -vvv

If everything is OK, you will see the key OK message.

opendkim-testkey: using default configfile /etc/opendkim.conf
opendkim-testkey: checking key '20200308._domainkey.linuxbabe.com'
opendkim-testkey: key OK

Note that your DKIM record may need sometime to propagate to the Internet. Depending on the domain registrar you use, your DNS record might be propagated instantly, or it might take up to 24 hours to propagate. You can go to https://www.dmarcanalyzer.com/dkim/dkim-check/, enter 20200308 as the selector and enter your domain name to check DKIM record propagation.

If you see “Key not secure”, don’t panic. This is because DNSSEC isn’t enabled on your domain name. DNSSEC is a security standard for secure DNS query. Most domain names haven’t enabled DNSSEC. You can continue to follow this guide.

Now we can start the opendkim service.

sudo systemctl start opendkim

And enable auto-start at boot time.

sudo systemctl enable opendkim

OpenDKIM listens on 127.0.0.1:8891.

Step 6: Connect Postfix to OpenDKIM

Edit Postfix main configuration file.

sudo nano /etc/postfix/main.cf

Add the following lines at the end of this file, so Postfix will be able to call OpenDKIM via the milter protocol. Note that you should use 127.0.0.1 as the address. Don’t use localhost.

# Milter configuration
milter_default_action = accept
milter_protocol = 6
smtpd_milters = inet:127.0.0.1:8891
non_smtpd_milters = $smtpd_milters

Save and close the file. Then add postfix user to opendkim group.

sudo gpasswd -a postfix opendkim

Restart postfix service.

sudo systemctl restart postfix

Step 7: SPF and DKIM Check

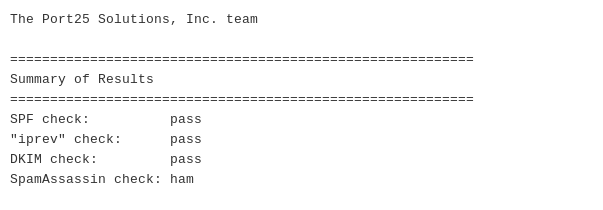

Now you can use your desktop email client or webmail client to send a test email to [email protected] and get a free email authentication report. Here’s the report I got from port25.com.

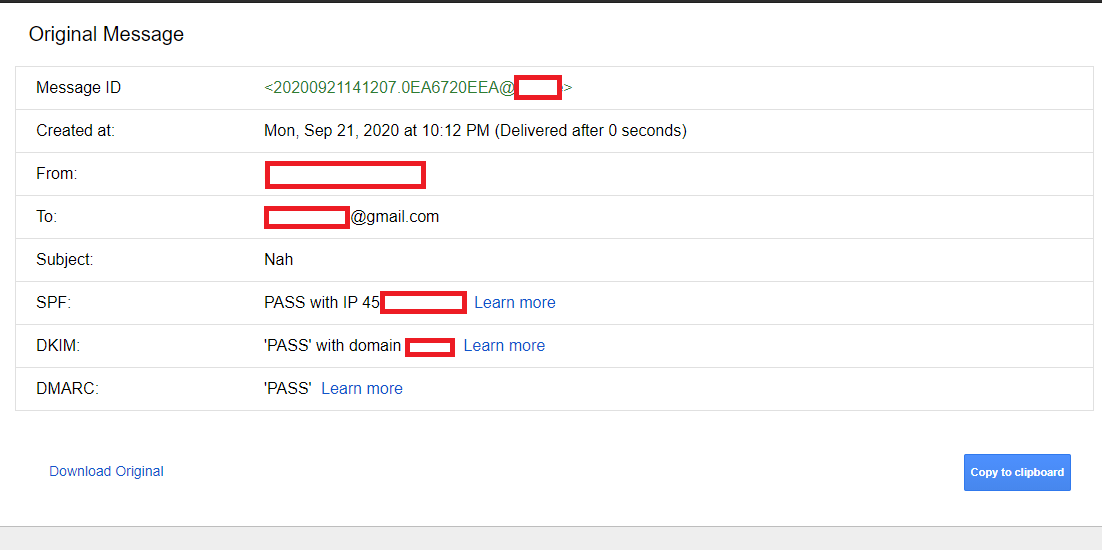

You can also send a test email from your mail server to your Gmail account to see if SPF and DKIM checks are passed. On the right side of an opened email message in Gmail, if you click the show original button from the drop-down menu, you can see the authentication results.

If your message is not signed and DKIM check failed, you may want to check postfix log (/var/log/maillog) to see what’s wrong in your configuration.

Your email server will also perform DKIM verification on incoming emails. You can see the results in the email headers. The following is SPF and DKIM check on a sender using Gmail.

Received-SPF: Pass (mailfrom) identity=mailfrom; client-ip=2607:f8b0:4864:20::c2d; helo=mail-yw1-xc2d.google.com; [email protected]; receiver=<UNKNOWN>
Authentication-Results: email.linuxbabe.com;
	dkim=pass (2048-bit key; unprotected) header.d=gmail.com [email protected] header.b="XWMRd2co";
	dkim-atps=neutral

How to Configure OpenDKIM For Multiple Domains

I have written a guide to hosting multiple domains on CentOS 8/RHEL 8 mail server with PostfixAdmin. In that article, I used Amavis for DKIM signing and verification. I you use OpenDKIM, then you need to skip step 3 in that article.

To configure OpenDKIM for multiple domains, you need to add the other domains in the signing table, key table and trusted hosts file like below.

Signing table:

*@domain1.com       20200308._domainkey.domain1.com
*@domain2.com       20200308._domainkey.domain2.com

Key table:

20200308._domainkey.domain1.com     domain1.com:20200308:/etc/opendkim/keys/domain1.com/20200308.private
20200308._domainkey.domain2.com     domain2.com:20200308:/etc/opendkim/keys/domain2.com/20200308.private

Trusted hosts:

127.0.0.1
localhost

.domain1.com
.domain2.com

Then generate the DKIM Private/Public keypair and add the DKIM public key in DNS as mentioned in step 3, step 4 and step 5 for other domains. Restart OpenDKIM and you are done.

sudo systemctl restart opendkim

Configuration Error in Email Client

DKIM signing could fail if you don’t use the correct SMTP/IMAP settings in your email client.

Correct Settings:

• SMTP protocol: enter mail.your-domain.com as the server name, choose port 587 and STARTTLS. Choose normal password as the authentication method.
• IMAP protocol: enter mail.your-domain.com as the server name, choose port 143 and STARTTLS. Choose normal password as the authentication method.

or

• SMTP protocol: enter mail.your-domain.com as the server name, choose port 465 and SSL/TLS. Choose normal password as the authentication method.
• IMAP protocol: enter mail.your-domain.com as the server name, choose port 993 and SSL/TLS. Choose normal password as the authentication method.

Wrong Settings:

• Use port 25 as the SMTP port in mail clients to submit outgoing emails.
• No encryption method was selected.

Port 25 should be used for SMTP server to SMTP server communication. Please don’t use it in your email client to submit outgoing emails.

You should select an encryption method (STARTTLS or SSL/TLS) in your email client.

Next Step

I hope this tutorial helped you install and configure OpenDKIM on CentOS 8/RHEL 8 mail server. Now you may want to read the following tutorial to set up OpenDMARC to block email spoofing.

• Set Up OpenDMARC with Postfix on CentOS/RHEL to Block Email Spoofing
